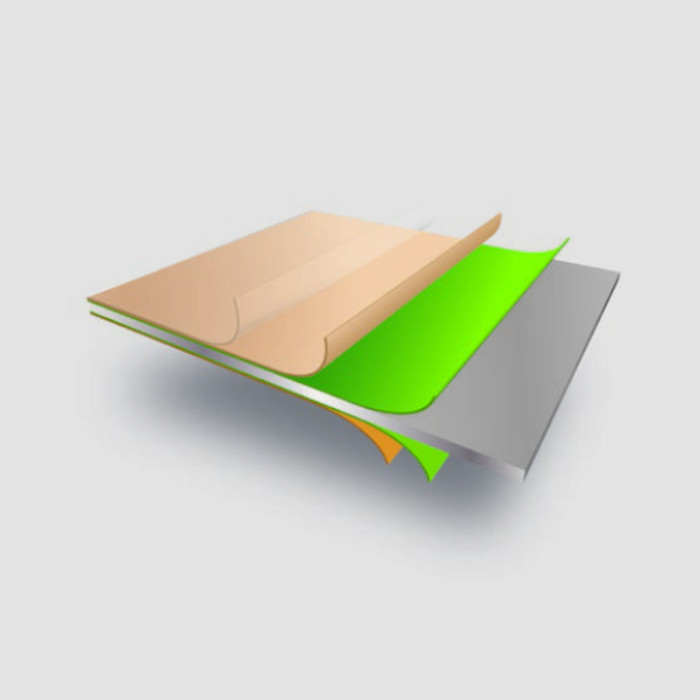

Product based on steel or aluminum covered with Tedlar® PVF film that provides long durability outdoors and aesthetic protection, especially suitable for
application in architecture and extreme climates.
Tedlar® PVF film is an inert and non-reactive material, with more than 50 years of proven durability, which represents savings in structural maintenance costs in buildings.
PFAS free film, which makes it an excellent environmental option compared to other paint solutions.
| DESCRIPTION | TESTING STANDARD | UNIT | RESULT | OBSERVATIONS | |
|---|---|---|---|---|---|
| Total coating thickness | EN 13523-1 | ASTM D1005 | µ | 17 – 47 | Depending type of film |
| Specular Gloss (Gardner 60º) * | EN 13523-2 | ASTM D523 | % | Matt | Some references also in gloss |
| Pencil hardness | EN 13523-4 | ASTM D3363 | F – H | ||
| Adherence after Erichsen cupping | EN 13523-6 | ASTM E643 | mm | 6 – 8 mm | On Aluminium -galva respectively |
| T Bending | EN 13523-7 | ASTM 0522 | 0T | No cracking. No whitening | |
| Resistance to salt spray | EN 13523-8 | ASTM B117 | hours | > 2000 | |
| Resistance to accelerated Xenotest ageing test | EN 13523-10 | ASTM 06695 | hours | > 7000 | No visible changes |
| Chemical resistant (window cleaner, nitric acid and muriatic acid) | AAMA 2605-13 | visual | No attack | After 1 week | |
| Humidity test | AAMA 2605-13 | ASTMD 2247 | hours | > 1000 | A Method |
| Thermal Cycling | IEC 61215 | IEC 61215 | cycles | 200 | -40ºC to +85ºC. No changes observed |
Tedlar® is a registered trademark of affiliates of DuPont de Nemours, Inc. and is used under license by REPLASA company.
